SZL型鏈條爐排生物質鍋爐

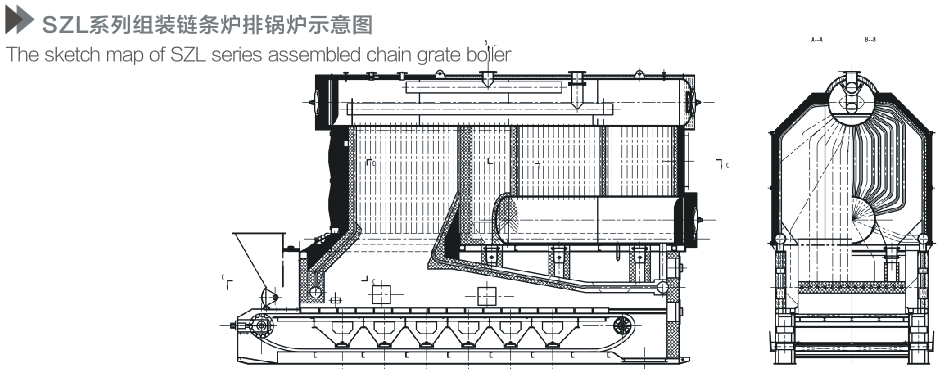

SZL型鏈條爐排鍋爐 SZL type chain grate boiler
SZL型組裝水管鍋爐，采用雙鍋筒縱置式布置，燃燒方式為鏈條爐排。燃用生物質或純煤成型固體燃料。爐膛兩側墻水冷壁采用膜式水冷壁結構;爐膛前、后墻水冷壁管向下延伸到爐排上部形成前后拱，增加鍋爐的密封性能，又增加了爐膛容積及受熱面，加固了后拱的強度。爐膛后為燃燼室、對流管束，尾部有省煤器。煙氣經爐膛、燃燼室、對流管束、省煤器進入尾部煙道，通過除塵器、引風機、煙囪排入大氣。前墻布置有二次風，由閥門控制，在燃用生物質燃料時投入使用，強化燃燒，使燃料充分燃盡，提高燃燒效率。較高的進料口，以滿足生物質燃料的需要。
SZL series shop-assemble water tubes boiler which is a vertical lype with double drums, uses chain grate as its combustion mode with rated this boiler uses shaped and solio biomass fuel the two sides of whose furnace adopt membrane water-cooled wall structure. The tubes of water-cooled wall
go down to the up side of the furnace which forms the front and rear arches so that the seal structure and intensity of back arch are enhanced and the cubic of the furnace and heating surface are enlarged.There are end combustion chamber and convection tube tank in the back of the funace with fixina an economizer in the rear. After through the funace,end combustion chamber,convection tube tankand economizer, the fiue gas came into the flue duct in the rear. and then went by dust precipitator. induced draft fan &chimney, and was discharged into the air in the end.

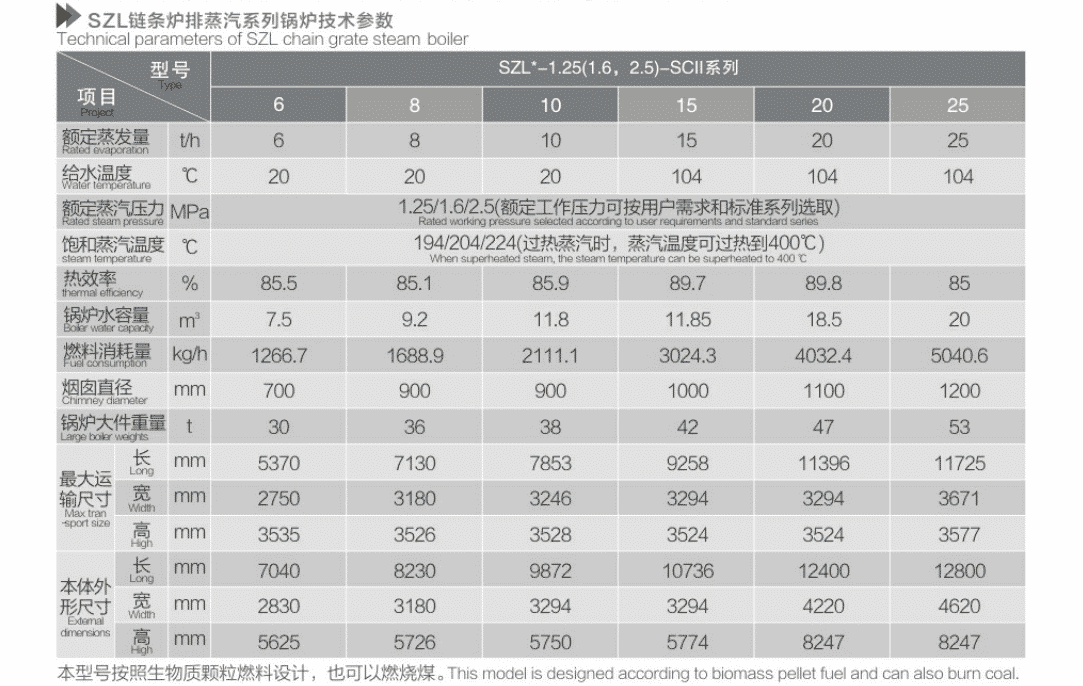

注：表中數據及圖片僅供參考，產品以實物為準，如因改機型而變更恕不另行通知。
